Säljes 10 nov Staffanstorp

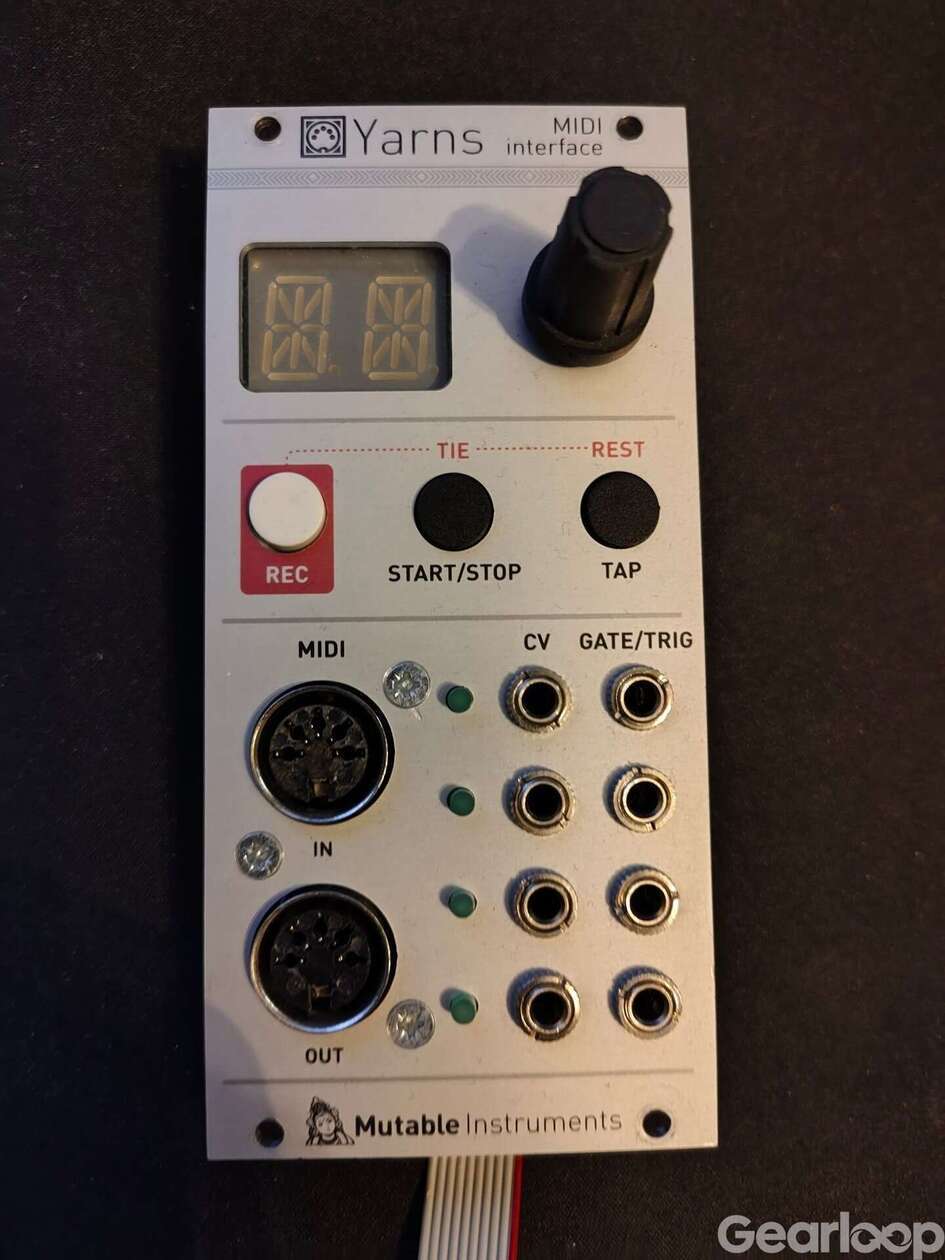

Mutable Instruments Yarns MIDI Interface

The main features of the Mutable Instruments Yarns MIDI Interface Eurorack Module include:

Monophonic with note, velocity, modulation wheel, auxiliary CC/aftertouch CV.
2-voice polyphonic or 2-part multitimbral with two note CV and auxiliary CC/aftertouch CV.
4-voice polyphonic or 4-part multitimbral with four note CV.
4-part trigger conversion with MIDI note selection for each part.
Clock/reset output in monophonic, duophonic, or trigger conversion modes.
Polychaining mode handling half of the notes internally and forwarding the other half to the MIDI out.
Transposition.
Split/keyboard ranges.
Multiple voice allocation schemes in polyphonic mode (voice-stealing, random, cyclic).
Multiple note priority modes in monophonic mode (lowest, highest, latest).
Arpeggiator with up/down/up&down/random/chord/”as played” modes and 22 preset patterns.
64-note SH-101 style sequencer per part.
Euclidean pattern generator.
1 V/oct and 5V Gate/Trigger standard.
Micro-tunings (through MIDI tuning messages).
Just intonation.
Portamento, pitch-bend and modulation wheel (vibrato).
Audio output mode replacing the note CV by a digital oscillator offering sine, square, pulse, triangle, sawtooth or noise waveforms.
8kHz CV refresh rate, 48kHz refresh rate in audio mode.
High-end 16-bit DAC and voltage references.
12-point calibration table, adjusted in factory.
8 memory slots for storing/recalling all settings and sequences.
Cortex-M3 ARM processor guaranteeing blazingly fast response to MIDI messages, even with a full stack of arpeggiators and sequencers running.
Open-source hardware and firmware.
12-HP.
Easy firmware updates through MIDI (SysEx).
Current consumption: +12V: 60mA ; -12V: 2mA.
