Säljes 20:04 Stockholm

Heritage Audio 1073/500 Anniversary Edition Mic Pre & EQ

I'm selling my gorgeous Heritage Audio 1073/500 Anniversary Edition and BAE 3LB 500 Series Rack. Absolutely beautiful for a creamy tone on just about anything. These are hand wired and no longer in production, a real rarity.

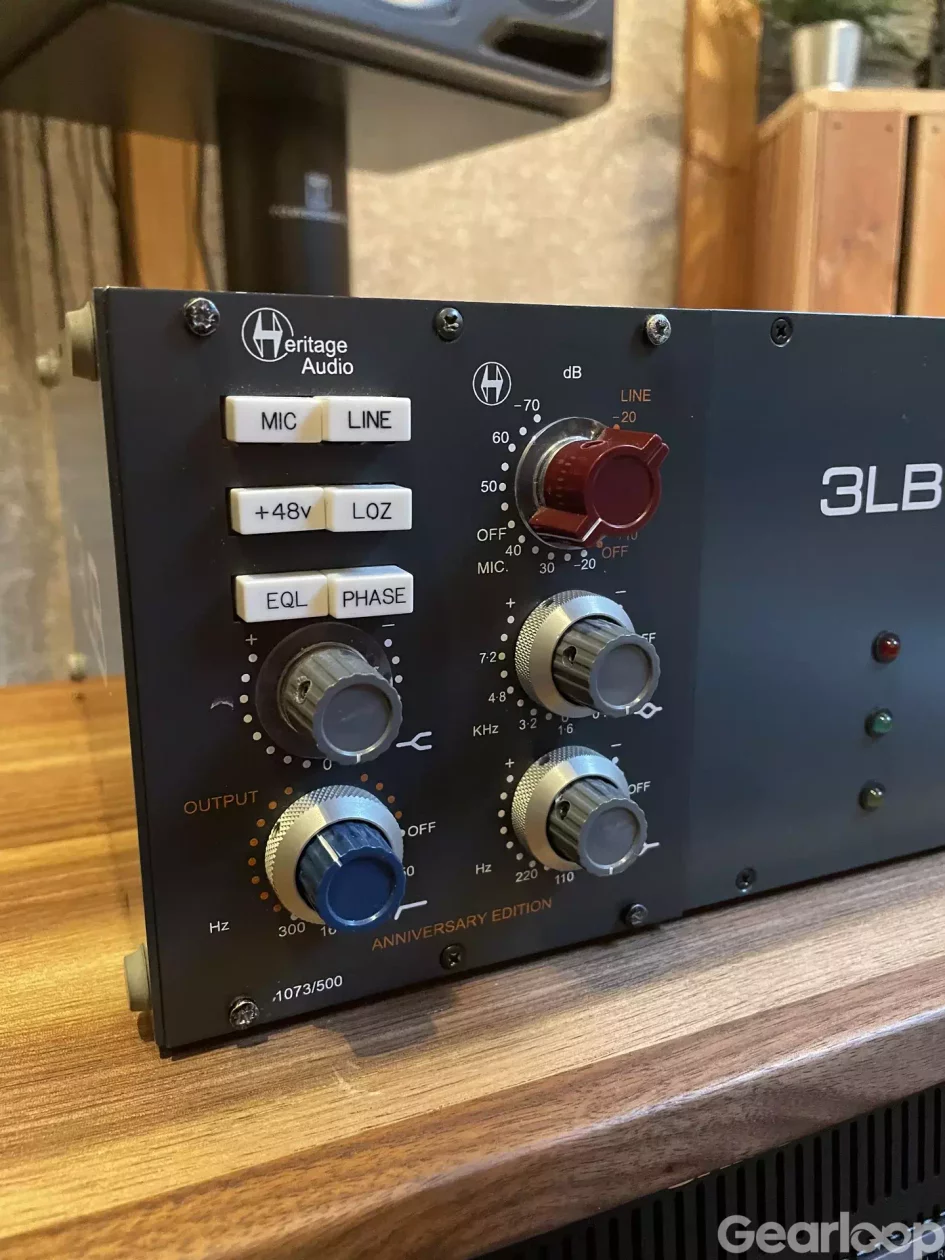

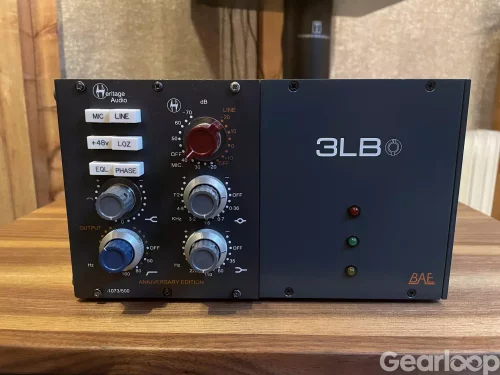

When I bought this I compared it to equivalent products from Neve and BAE and the Heritage won every time. The Anniversary Edition comes with an output trim so has added flexibility over the normal version, and the BAE 3LB lunchbox is super useful and has a handle on it for portable use. Condition shown clearly in the photos, some light marks on the BAE 3LB.

TECHNICAL SPECIFICATIONS
Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating.
Line input impedance: 10KOhms bridging, transformer balanced and floating.
Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
Maximum output: Greater than +26dBu into 600 Ohms,
THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
Frequency response :20Hz (+0.3dB) to 20Khz (-0.2dB).
Maximum Gain: Slightly greater than 70dB.
Noise: Less than -100dBu.
Power consumption: Less than 80 mA per rail@+-16VDC
