Säljes igår 21:16 Ulricehamn

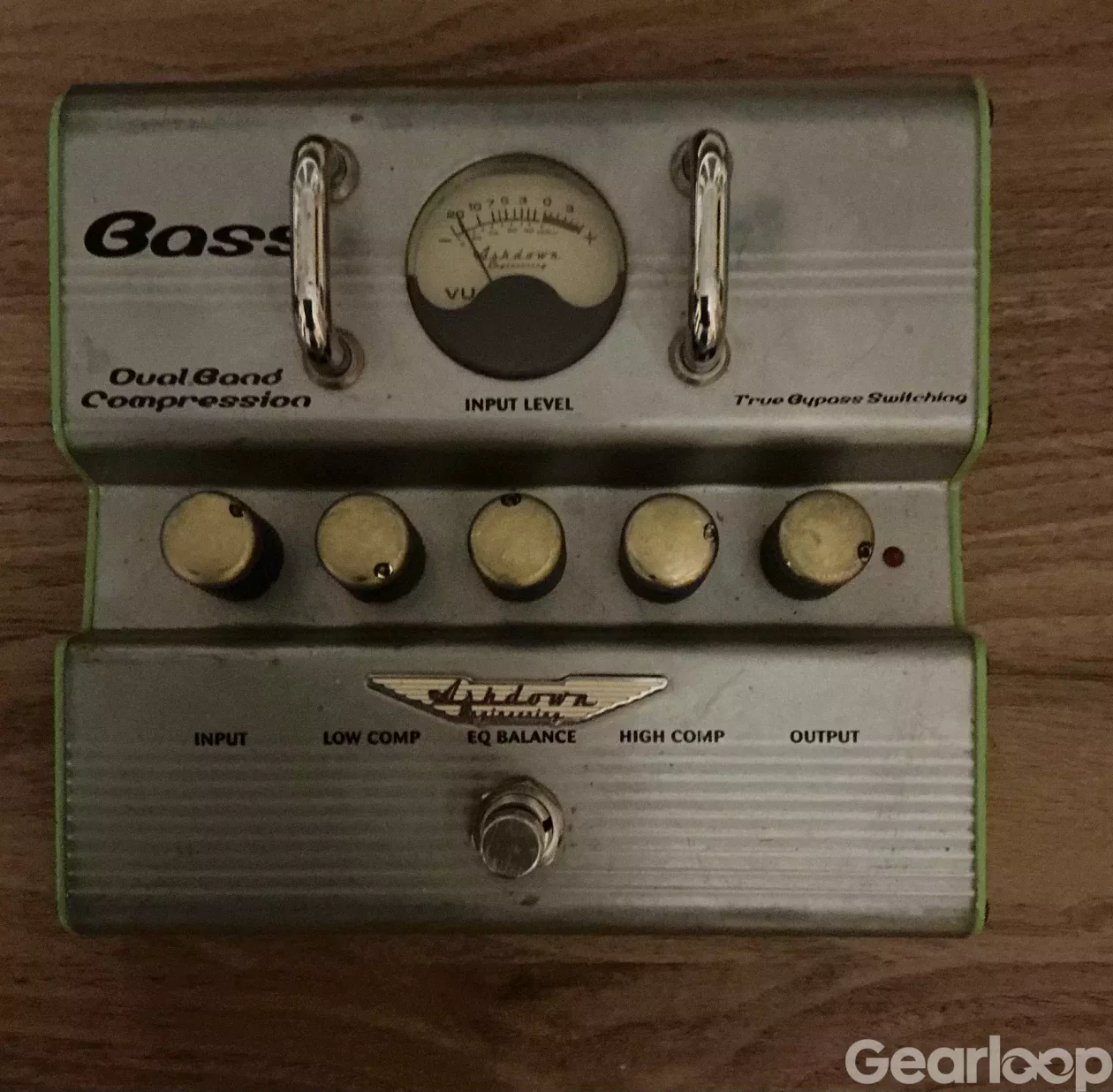

Ashdown Dual Band Bass Compression

Delar upp bas-ljudet i två olika frekvensband och tillämpar compression individuellt på varje band. ☺️👍

Dual Band Compression pedal

Designed to deliver a sophisticated, great-sounding compressor in a simple pedal format, our Dual Band Compressor is a must have tool for any modern bass player's rig.

Dual Band Compression

While standard compression can sound great, Dual Band Compression takes control to a whole new level. Splitting the signal into high and low frequency bands lets us apply compression independently to each – fast attack and decay for the high frequency and slow attack and decay for the deep bass. This approach let's you fine tune a powerful, punchy sound to your exact requirements – increasing sustain, smoothing out dynamics, adding definition or even boosting volume.

Setting the level

Whether you're using an active or passive bass, the Ashdown VU meter in combination with the Input level knob let's you easily find the sweet spot, ensuring you get the best possible tone in and out whatever instrument you're using.

Built for the road

We know the rigours of the live gigging, that's why we build our pedals tough enough for whatever the road throws at them. Metal casings, premium controls and switches, recessed knobs and kickguards to protect screens and VU meters – bring it on!

True Bypass Switching

We don't mess with your tone. Ashdown Pedals feature genuine 'true bypass' switching for zero-colouration of your input signal when the pedal isn't in use. The Output level control lets you dial in the perfect balance between the effect and the true bypass level.

Technical Specifications:

High pass filter section

Filter frequency 225Hz

Filter roll off 12dB/octave

Low pass filter section

Filter frequency 900Hz

Filter roll off 12dB/octave

Composite crossover point of the overlapping High and Low pass filters =

350Hz

High compression

Attack time 1mS

Decay time 70mS

Max comp ratio 8:1

Low compression

Attack time 22mS

Decay time 122mS

Max comp ratio 8:1

Input

Impedance 470k Ohms

Signal level –10dBv to 0dBv

Output

Impedance 10k Ohms

Signal level variable –10dBv to 0dBv

Supply

Internal 9v battery

External supply 9v DC adaptor. Centre pin negative.
