Meris Ottobit Jr - Bitcrusher / Step-sequencer / Stutter

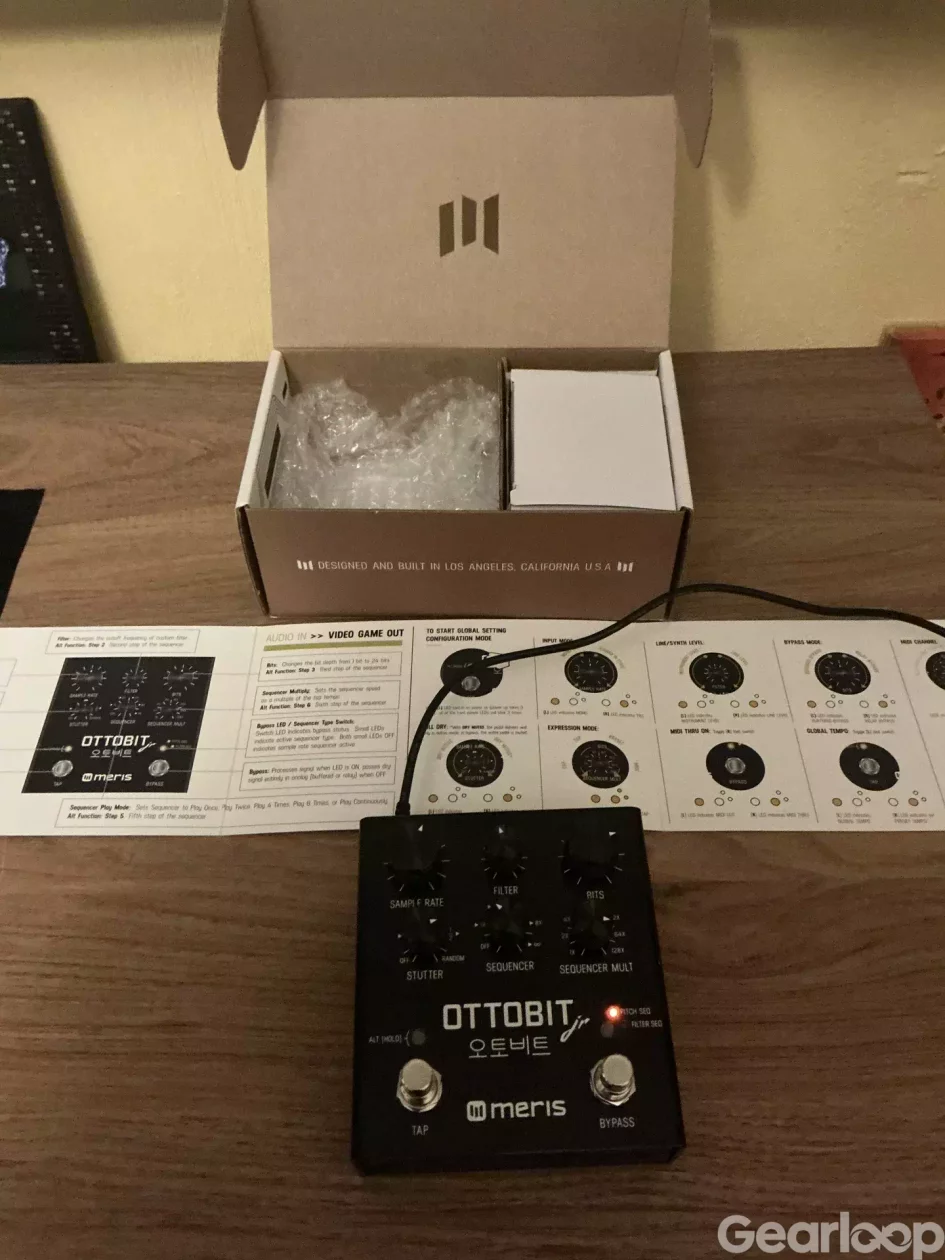

En modern klassiker och favoritpedal bland gitarrister till musikproducenter som jobbar med grooveboxes, i superfint skick med originalkartong & manual! ☺️👍

Kolla Youtube för demos om du inte känner till den! ✌️😉

Lägsta nypris: 3800 kr
(ibland upp till 4400 kr!)

Jag har även en Meris MIDI I/O (nypris 1150 kr) som jag lägga till vid köp av Ottobit för endast 500 kr extra! 💪😎

Key Features and Controls

Bit Crusher: Reduces bit depth (24-bit to 1-bit) and sample rate (48kHz to 48Hz) for gritty lo-fi or noisy sounds, featuring a noise gate.

Sequencer: A 6-step sequencer that can control pitch, filter, or decimation, with adjustable speed via tap tempo.

Stutter: Triggers rhythmic, glitchy repetitions of the input signal, controllable by a tap tempo switch.

Filter: Features a resonant low-pass ladder filter to tame high-end harshness.

Control & I/O: Offers stereo input/output, and Expression pedal control over all parameters simultaneously.

MIDI: Features MIDI in/out over TRS via the EXP jack.

Bit Crusher / Sample Reduction / Step Sequencer

Pedal version of the Meris 500 series Ottobit

2 Sequencer types: Pitch Seq / Filter Seq

Sample reduction from 48 kHz to 48 Hz

Bit Depth Reduction from 24 to 1 bit

Up to 16 presets via MIDI

24 Bit AD / DA with 32 bit floating point DSP

Selector Bypass (True / Relay Bypass or Buffered Bypass)

Switchable headroom for guitars / line level input levels

Tap Tempo function

Analog signal path

MIDI In / Out / Preset selection / external Tap Tempo available via EXP jack

Analog wet / dry mix

Presets selectable via external 4-preset switch or MIDI

Controls for sample rate, filter, bits, stutter, sequencer, sequencer mult

Alt (hold) button for activating alternative controller functions

Sequencer Type button to select between Pitch Seq / Filter Seq

Bypass foot switch

Tap foot switch

Status LEDs

Metal housing

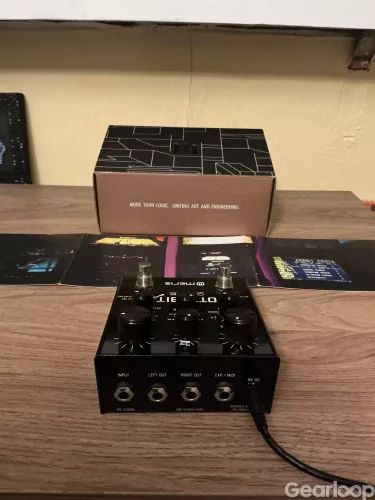

6.3 mm TRS input - stereo / mono switchable

2x 6.3 mm mono jack (L / R) outputs

6.3 mm TRS Exp / Tap Tempo / external foot switch / MIDI jack

Power supply with 9 V DC power supply (2.1 mm x 5.5 mm coaxial connection, polarity (-) inside, not included)

Current consumption <150 mA

Dimensions (L x W x H): 115 x 107 x 67 mm

Weight: 410 g

Made in USA
