Säljes 16 okt Stockholm

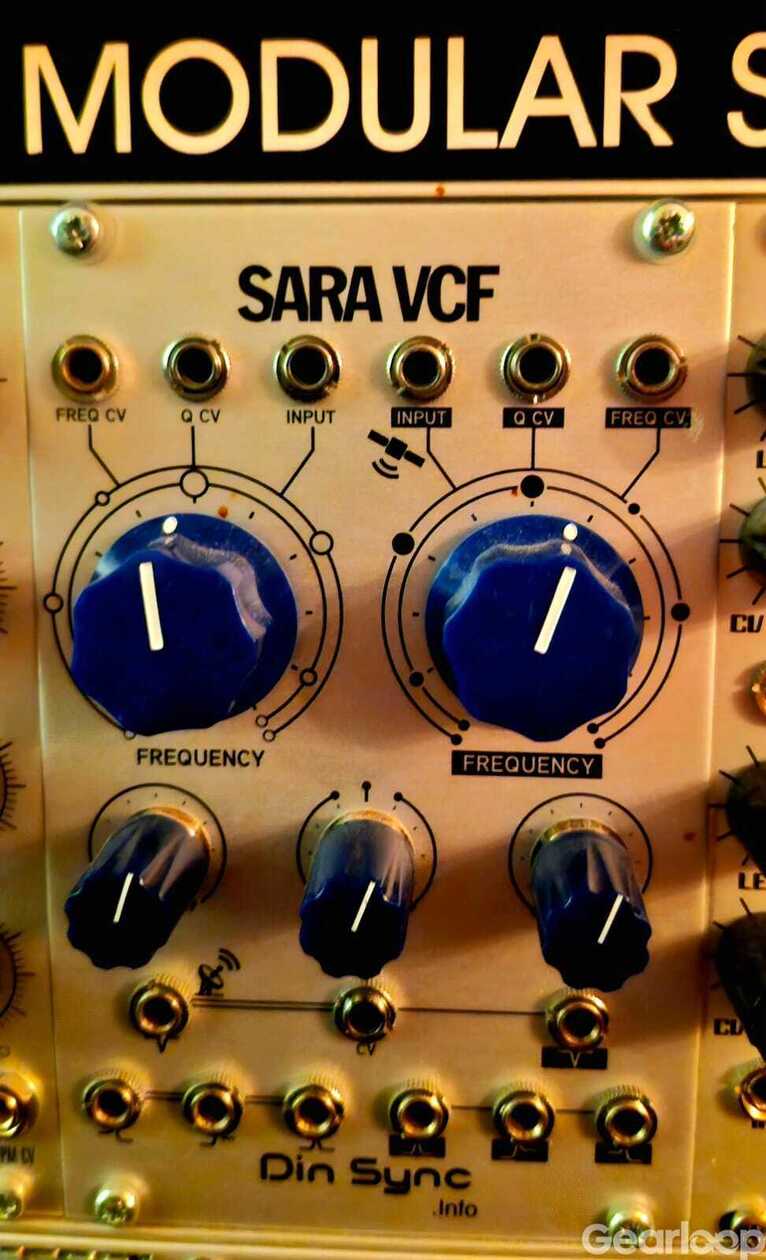

DinSync.Info Sara VCF

The Sara VCF is a fully voltage controlled state variable filter with dual
“opposing” self oscillating cores. The tone capabilities can range from
delicate to outrageous and all stops in between. Everything from classic
vintage twin filter setups, oscillator into filter (quasi-lpg), self oscillation
and formant style soundscapes. The Sara VCF does well both in classic
duties and experimental sounds (just try self patching the state control
from one of the core outs).
With CV over every control the modulation possibilities open the palette of
sound even further.
Each core features:
Control voltage for cutoff -12/+12v
Control voltage for Q 0/+5v
Control voltage for State 0/+5v (shared)
Self oscillation, tracking 1v/oct for around 4 octaves
Key features:
Dual “opposing” cores where each core is a mirror state of the other
When one core’s state is swept fully low pass the other core is fully high
pass
Control voltage for state works well into audio range
Additional features:
Eight simultaneous outputs from various stages of routing
Core two input is normalled from core one notch output
Can also be used as two independent filters
Each core has a different input/output response
Available mid 2014, ask your favorite stockist or order direct from
[email protected]
FREQUENCY
Q
CORE 1
INPUT
HP OUT
BP OUT
LP OUT
NOTCH OUT
FREQUENCY
Q
CORE 2
STATE
HP OUT
BP OUT
LP OUT
NOTCH OUT
Meet SARA.
CV
FREQ CV Q CV INPUT INPUT Q CV FREQ CV
FREQUENCY
STATEQ Q
FREQUENCY
Q STATE Q
FREQUENCY FREQUENCY
We are proud to present the first of our new “Sara” line of modules.

OBS! Inga byten är intressanta.
Kan skickas.
