Säljes 16 okt Stockholm

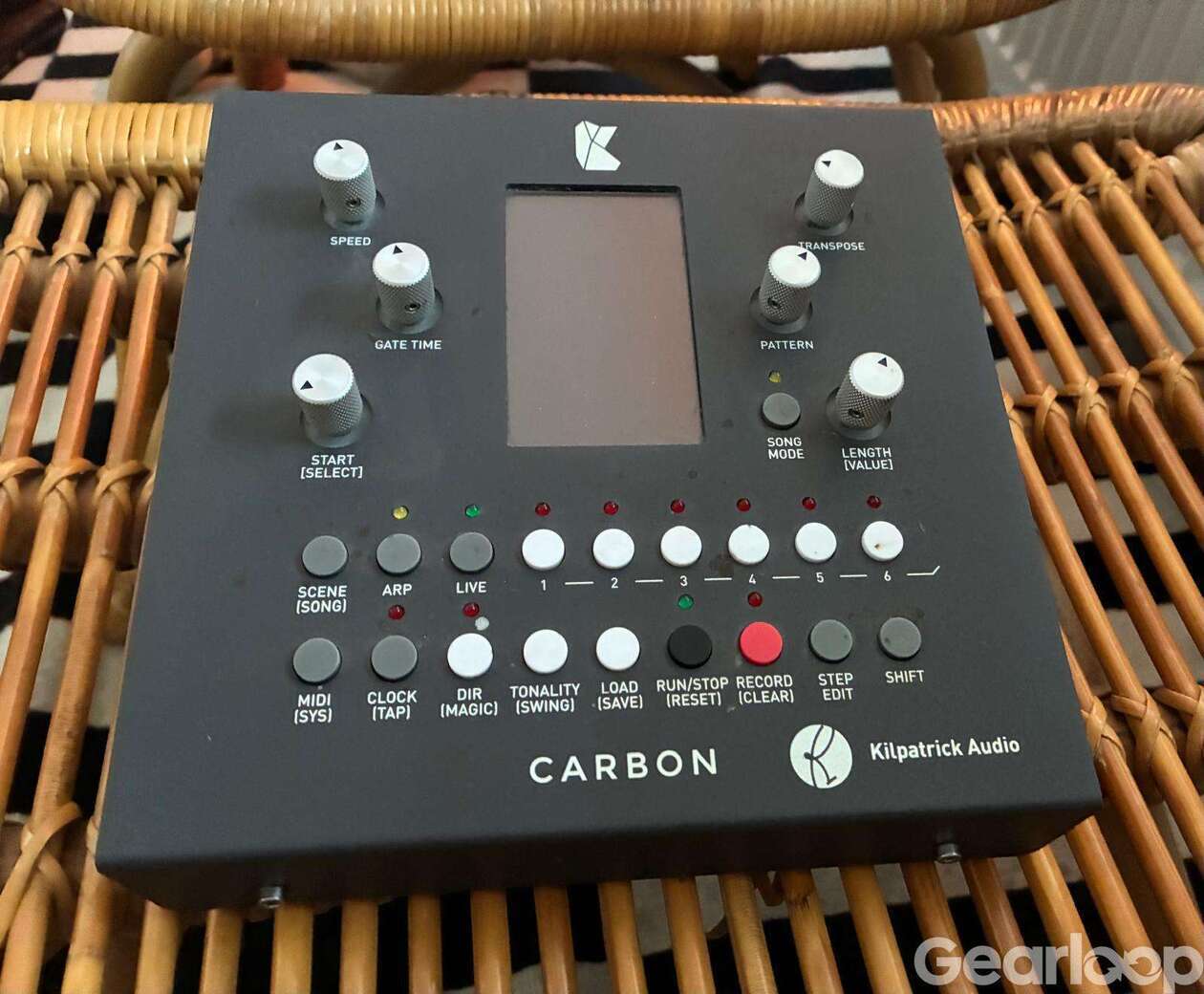

Kilpatrick Audio Carbon

Features and Specs
Pattern-based sequencer, performance control system and USB interface
Beautiful colour LCD screen shows everything in real-time
Six rotary encoders and nineteen buttons offer fast intuitive control
Six tracks with two assignable outputs per track
Up to 64 steps per track
Polyphonic tracks store chords and CC data (6 events per step)
Playback start and end points are uniquely configurable for each track
Gate pattern function offers quick remixes each track
Multiple track select allows adjusting multiple track parameters at the same time
Tap tempo and fractional BPM setting for perfect timing adjustment
High resolution internal clock source never drifts or jitters
Swing control with automatic handling of tracks with different time divisions
Flexible MIDI and CV routing allows huge control possibilities
Bias tracks allow transposing of other tracks for oldschool sequencer tricks
Six scenes offer fast parameter changes during live performance
LIVE mode allows live performance from a keyboard
Keyboard transpose mode allows transposition during playback
Internal 2MB flash memory offers storage for 64 songs - Upload and download from PC or Mac (software required - TBD)
Keyboard split and LIVE multi-select modes allow fast and flexible live MIDI routing
Powerful arpeggiator on every track can be used live or with sequence playback
Rock-solid MIDI / analog clock source can be the heartbeat of your studio
Complete open source firmware uses free development tools - ready for your own hacks! We also have a repository on GitHub CARBON repo on GitHub
Rear panel connections / controls:
Analog clock and reset outputs (0V/+5V)
Four CV outputs (-5V to +5V - 1V/octave digitally calibrated)
Four gate outputs (0V/+5V)
Two MIDI output ports (separately assignable)
MIDI input port
USB host port - provides up to 500mA to power USB controllers
USB device port - connects to PC or Mac for use as a MIDI interface and controller
Power switch
DC input jack
Power input: 24VDC @ 250mA (500mA regulated supply required / supplies)
Dimensions: Approx. 7.75" W x 8" D x 3" H (height measured as rear height of enclosure)
Weight: TBD
Operating temperature: 15C to 30C (59F to 86F)
Storage temperature: -10C to 45C (14F to 113F)
Universal input power supply (100-240V) included
units purchased from North American dealers ship with a US-style plug
units purchased from UK, EU and Australian and Japan dealers ship with a set of plugs for US, UK, EU and Australia
Designed and Made in Canada using high quality parts
