Säljes 3 feb Enköping

AVID E3 + AVID Stage 16 Remote I/O Stage Rack (inc.USB-IlLOQ)

in excellent condition and always stored in a case that belongs to the store...
Avid .Engine3 is in a floated case

Also include the necessary amount from the cabinets...



Ps. Private seller, so VAT is not added to the price

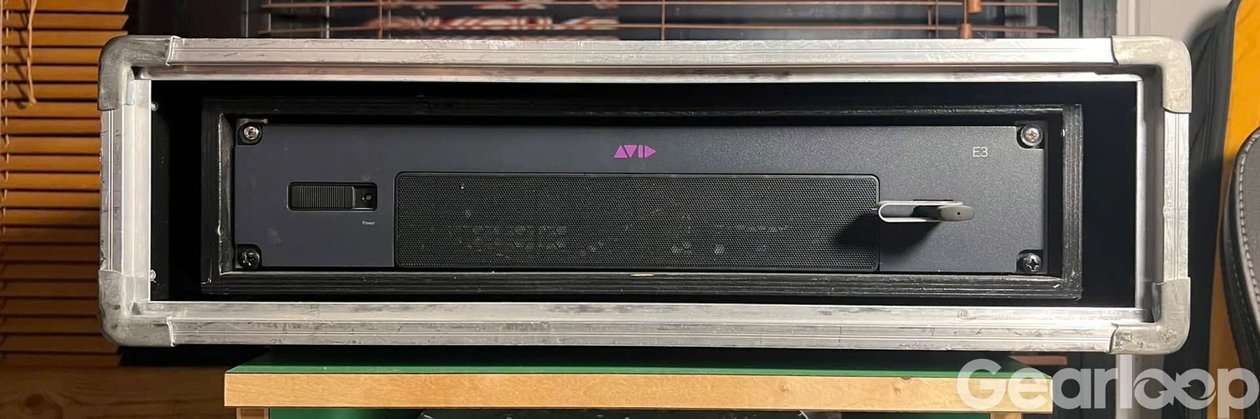

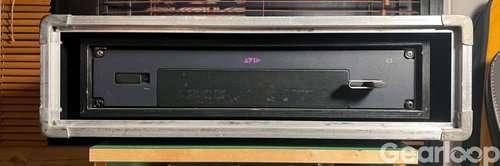

AVID E3 2U Rack-Mountable HDX-Powered Engine for S3L System



AVID E3 Engine for S3L Console



The E3 engine provides mix position audio I/O, and connections for synchronization, utility and control. The E3 engine also houses the main CPU, DSP, and system drives for the S3L-X system. The E3 engine is located at the mix position along with the console.



Audio I/O:



Four analog mic/line XLR inputs with mic preamps for connecting microphones or line-level devices at the mix position

Four analog line-level XLR outputs

Two stereo AES/EBU digital inputs

Two stereo AES/EBU digital outputs

Synchronization, Control and Utility Connections:



Three Neutrik etherCON RJ-45 Ethernet Network ports for connecting to the S3 control surface and Stage 16 boxes

One standard RJ-45 Ethernet port for connecting to a client computer or networking equipment to enable ECx Ethernet Control remote system control

Three external USB 2.0 ports for connecting USB storage devices (for data transfer, and for 2-track recording and playback), iLok USB Smart Keys (for plug-in authorization), and compatible MIDI devices

One internally-mounted, secure USB 2.0 port for an iLok

16 channels of MIDI input and 16 channels of MIDI output via a compatible external USB MIDI interface

DVI video monitor port for software screen display

Word clock I/O for digital clock synchronization

One RJ-45 (100 BaseT Ethernet) port for ECx Ethernet Control remote system control

One GPIO port (DB9 connector) providing two GPI inputs and two GPI outputs

An internal universal PSU (100V to 240V nominal 50–60 Hz) accepting standard IEC AC power cables



CPU, DSP, and System Drives:

The E3 engine houses the CPU, Avid Pro Tools|HDX-powered DSP, and system drives that provide the processing power to run the VENUE software and plug-ins for your system. The USB ports on the E3 engine allow you to do the following:



Update and restore your VENUE system software

Install compatible plug-ins

Transfer VENUE Show files and other data

Record and play back 2-track audio

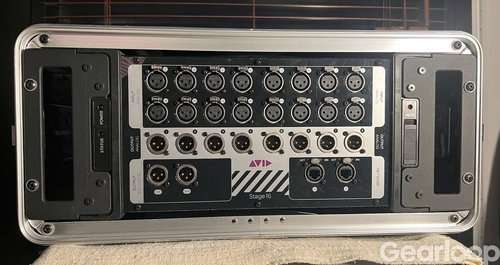

AVID Stage 16 Remote I/O Stage Rack for S3L Digital Mixing System



Stage 16 provides remote stage I/O for S3L-X systems in a 4U rack-mountable enclosure. The S3L-X system supports redundant audio snake connections to up to four Stage 16 boxes. Audio snake connection are made using supported Ethernet cables.



Audio I/O



•16 analog inputs with remotely controllable mic preamps and individually selectable phantom power •Eight analog outputs •Four AES digital output channels (on two stereo connectors)



Control Connections



•Two Neutrik etherCON RJ-45 Ethernet Network ports for connecting to the E3 engine and to other Stage 16 boxes •An internal universal PSU (100V to 240V nominal 50–60 Hz) accepting standard IEC AC power cables
