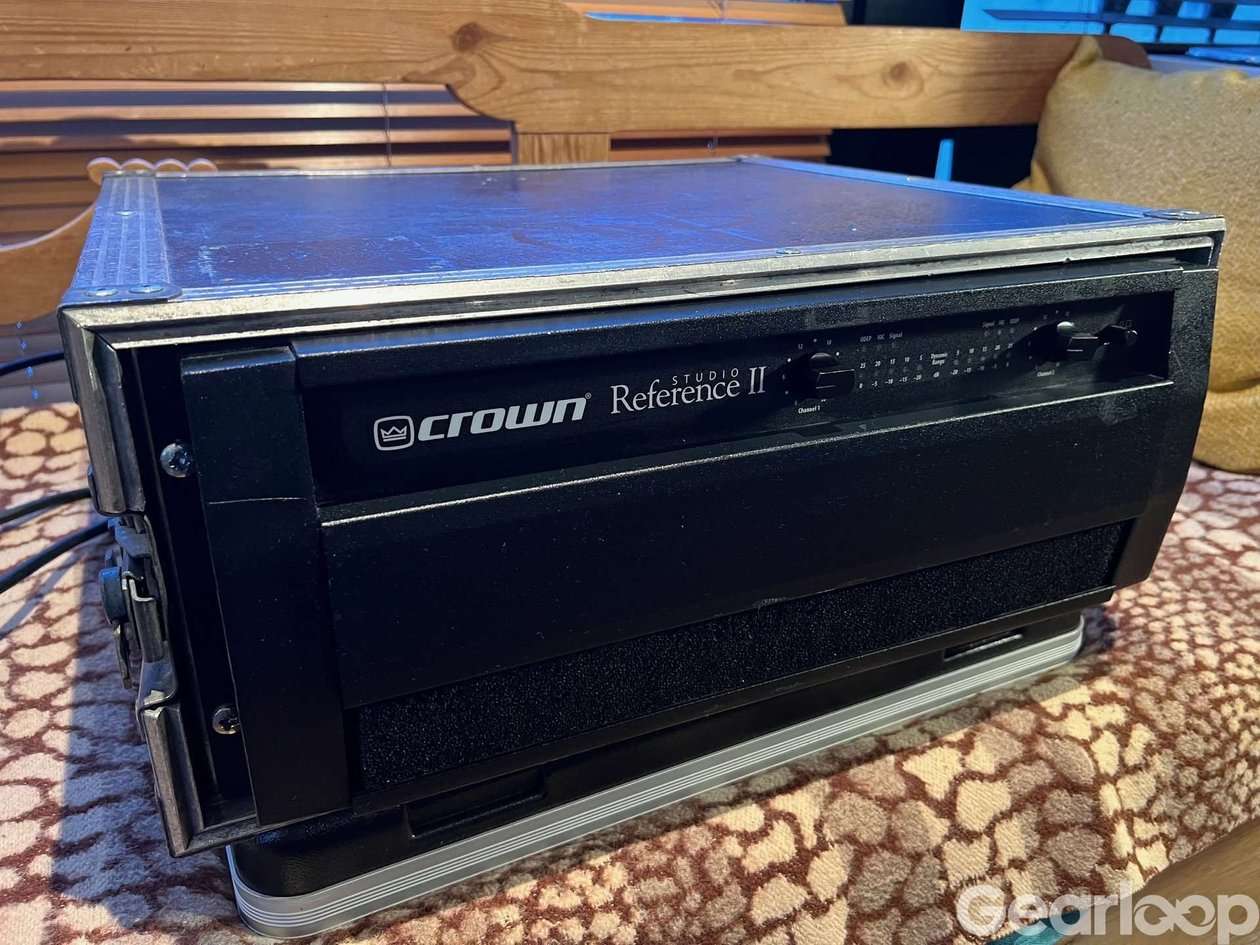

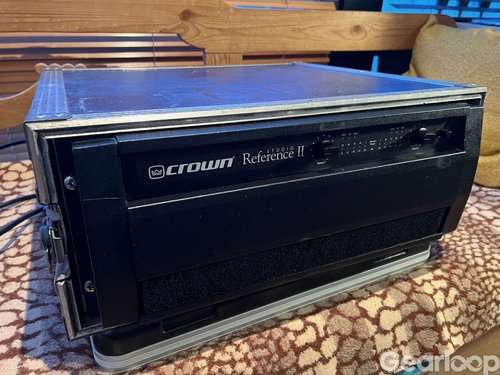

Crown Studio Reference II Powered Amplifier

The stunning realism you will experience when listening to a Crown Studio Reference II amplifier will redefine your expectations. The evolution of this studio standard ushers in a new era of powerful, ultra-quiet amplifiers capable of faithfully reproducing the most demanding of signals.



Studio Reference amplifiers integrate several cutting edge technologies that make them the most accurate reference amplifiers available. For example, in Stereo mode each channel can actually be treated as a separate amplifier because of its separate high-voltage power supplies and ultra-low crosstalk. Crown’s unconventional Grounded Bridge™ circuitry delivers incredible voltage swings without using stressful output transistor configurations like other more traditional amplifiers. This results in significantly lower distortion and superior reliability.



Features

Patented ODEP® (Output Device Emulation Protection) circuitry detects and compensates for overheating and overload to keep the amplifier working when others would fail.

IOC® (Input/Output Comparator) circuitry immediately alerts you of any distortion that exceeds 0.05% to provide dynamic proof of distortion-free performance.

PIP™ (Programmable Input Processor) connector accepts accessories that tailor your amplifier to suit specific applications.

Extremely wide dynamic range.

Ultra-high damping factor delivers superior loudspeaker motion control for the cleanest, tightest bottom end you’ve ever felt—or heard.

Super-low harmonic and intermodulation distortion give your amplifi er the best transfer function in the business.

Two mono modes (Bridge-Mono and Parallel- Mono) for driving a wide range of load impedances.

Custom-designed, tape-wound, low-noise toroidal supplies.



Output Power

(Maximum average power at 1 kHz with less than 0.02% THD):



· Stereo Mode with

Both Channels Driven:



· Studio Reference 2:

360 watts into 8 ohms, 565 watts into 4 ohms. Bridge-Mono Mode:



· Studio Reference 2:

1,145 watts into 8 ohms.



· Signal-to-Noise:

(A-weighted) At 26 dB gain with 8 ohm load.



· Studio Reference 2:

Better than 117 dB below rated power.



· Total Harmonic

Distortion (THD): Less than 0.02% at rated power. Intermodulation Distortion

(IMD): (60 Hz and 7 kHz, 4:1):



· Studio Reference 2:

Less than 0.005% from full bandwidth power to 36 watts rising linearly to

0.025% at 36 milliwatts.



· Load Impedance: Safe

for all types of loads. Rated for 4 to 8 ohms in Stereo, 8 to 16 ohms in

Bridge-Mono mode, and 2 to 4 ohms in Parallel-Mono mode.



· Input Impedance:

Nominally 10 k ohms balanced and 5 k ohms unbalanced.



· Controls: Enable,

channel 1 and 2 level controls, stereo/mono (Stereo, Bridge-Mono,

Parallel-Mono), ground lift switch, input sensitivity switch (0.775 V or 1.4 V

for standard 1 kHz power or a 26 dB voltage gain), meter on/off switch, dynamic

range/level meter switch, reset switch.

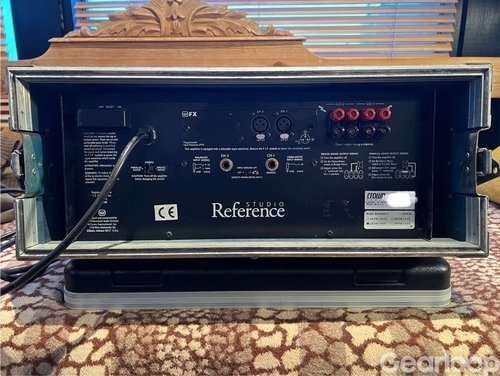

Connectors:



· Inputs: Balanced

1/4-in. phone jacks on chassis and female XLR connectors on standard PIP

module.



· Output: A pair of

color-coded dual binding posts for each channel.



· PIP: Standard back

panel PIP connector.



· AC Line: 3-wire male

connector with 5 ft. cable.



· Dimensions: 19 in.

(48.3 cm) standard rack mount width, 7 in. (17.3 cm) height, 16 in. (40.6 cm)

depth behind mounting surface and 2.74 in. (7 cm) protrusion in front of

mounting surface. Approximate Weight:



· Studio Reference 2: 56 lbs., 2 oz.

(25.5 kg).
