JBL 2405 16 ohm / JBL LX5 Crossover

1 PCS

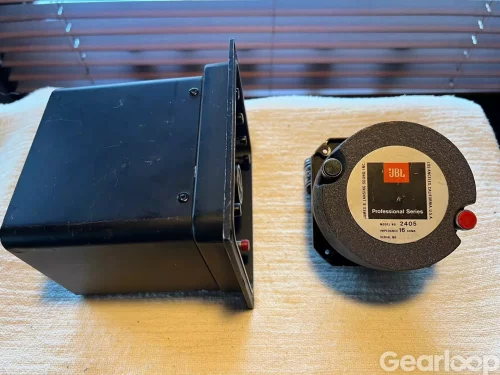

Type: JBL 2405

Specifications (16 ohm version):

Frequency range: 6,500 Hz – 21,500 Hz

Power: 20 watts continuous

Nominal impedance: 16 ohms

Sensitivity: 105 dB SPL (1 W, 1 m)

Voice coil diameter: 44 mm

Voice coil material: Edge-wound aluminum strip

Magnetic assembly: Alnico V

Decomposition: >90°C in horizontal direction /

>30°C vertically at 16 kHz

Recommended crossover frequency: 7,000 Hz or higher,

at least 12 dB/octave



Weight: ~2.3 kg

link:

www.troelsgravesen.dk/TL-2/datasheet-077.pdf

—————————————————————————————-

1 pc

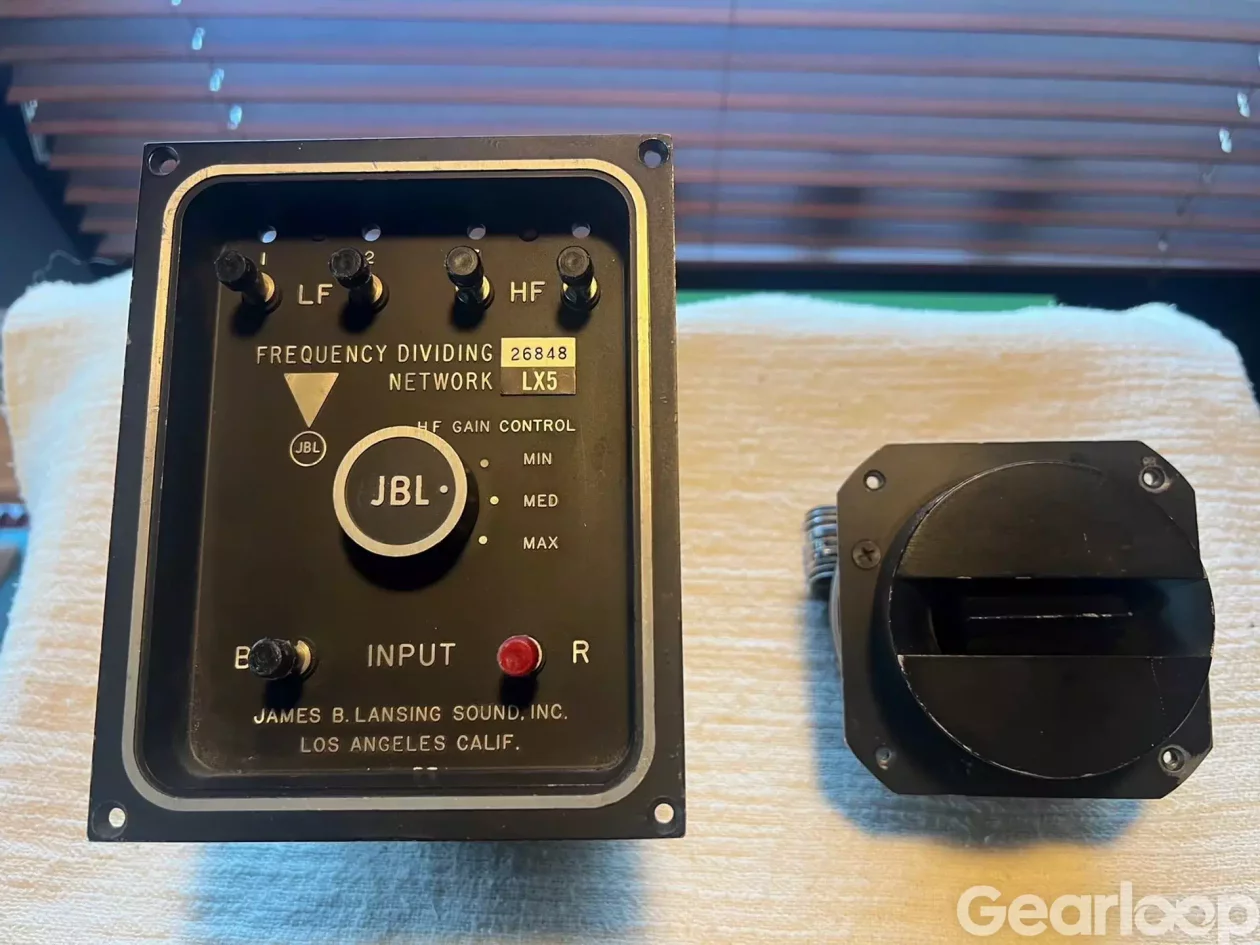

Type JBL LX5 Crossover

The system allows the input method

(during continuous programming) 100 W

125 W (when using 375 + HL93)

Split frequency 600, 2500 Hz

Used speaker Low frequency: LE15A

For high frequency range: LE175, LE85, 375

Horn lens: HL91, HL93

Level adjustment 3-position switch

Input impedance 8 Ω

Weight 2.5 kg

Dimensions

12.5 cm L x 15 cm H x 12.4 cm D

The price includes both items
